Halogen Lamp Compound Optical Microscope Kohler WF10X A12.2702-B Blue Filter

Name: Halogen Lamp Compound Optical Microscope Kohler WF10X A122702B Blue Filter
Brand: CNOEC, OPTO-EDU
Price: 1 USD

Quality Halogen Lamp Compound Optical Microscope Kohler WF10X A12.2702-B Blue Filter for sale

Brand Name : CNOEC, OPTO-EDU

Model Number : A12.2702-B

Certification : CE, Rohs

Place of Origin : China

MOQ : 1 pc

Price : FOB $1~1000, Depend on Order Quantity

Payment Terms : T/T, West Union, Paypal

Supply Ability : 5000 pcs/ Month

Delivery Time : 5~20 Days

Packaging Details : Carton Packing, For Export Transportation

Head : Trinocular Head 30° inclined, 360° rotatable, interpupillary distance 52-75mm

Eyepiece : WF10X/20mm, high eye-point up to 21mm

Objective : Infinity Plan Objectives 4x/0.13, 10x/0.30, 40x/0.70 (Spring),100x/1.25 (Spring,oil)

Nosepiece : Quadruple reversed nosepiece

Stage : Double layer mechanical, size 156x138mm, moving range 76x54mm. Low positioned X-Y coaxial control knob, can hold 2 specimen slides

Condenser : Abbe N.A.1.25 with aperture iris diaphragm and with socket to accomodate Phase Contrast slide Condenser center adjustable, color-coded diaphragm scale makrings corresonded with the objectives of different power.

Filter : Blue filter

Light source : 6V 20W halogen lamp, Kohler type with field diaphragm

Power : 100-240V wide power range, CE certified

Contact Now

halogen lamp Kohler WF10X Infinity Plan Objectives A12.2702-B

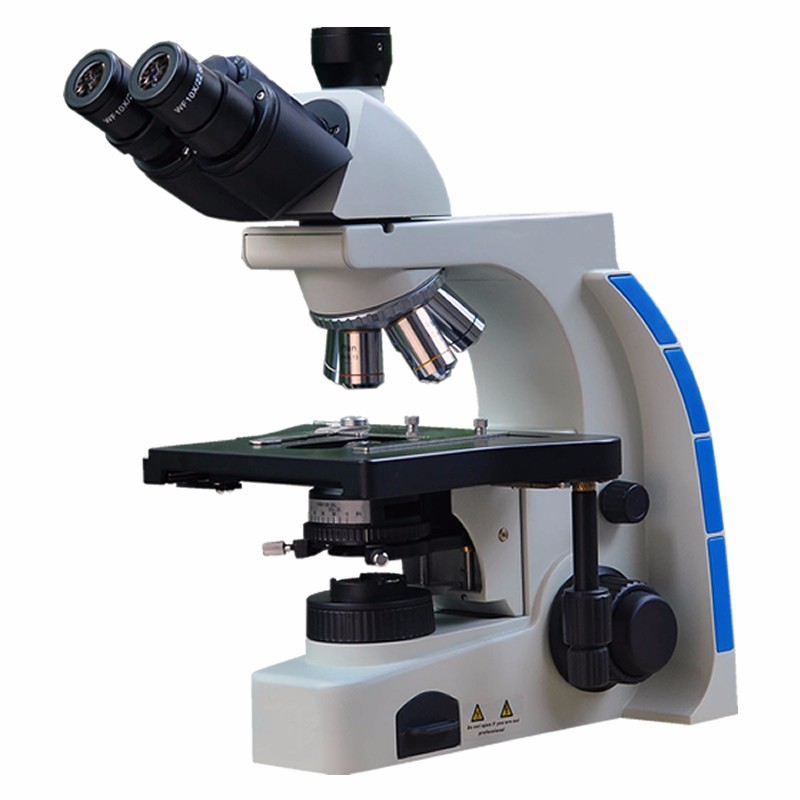

A12.2702 laboratory microscope, with its elegant figure, brilliant UCIS optical system, thoughtful ergonomic design and stable mechanism, it is best choice for your routine work inmedicine, clinical laboratories, pathology and biology.

--UCIS universal infinity independent plan optical system, parfocal distance 45mm
--Flexible upgrade path for phase contrast, dark field, and polarization
--Surface at lower temperature even after long time work
--Robust and vibration resistant
--Kohler illumination with 6V 20W halogen lamp
--Net weight of Standard Outfits:6.7kg Gorss Weight of Standard Outifts:9.1kg

Halogen Lamp Compound Optical Microscope Kohler WF10X A12.2702-B Blue Filter

Specification	A12.2702-A	A12.2702-B
Head	Binocular Head 30° inclined, 360° rotatable, interpupillary distance 52-75mm	Trinocular Head 30° inclined, 360° rotatable, interpupillary distance 52-75mm
Eyepiece	WF10X/20mm, high eye-point up to 21mm
Objective	Infinity Plan Objectives 4x/0.13, 10x/0.30, 40x/0.70 (Spring),100x/1.25 (Spring,oil)
Focus System	Low positioning, Coaxial coarse/fine focus system, Coarse knob tension adjustable, 14mm per rotation Fine knob 0.1mm per rotation, minimum reading 1 microns on left-side fine knob
Nosepiece	Quadruple reversed nosepiece
Stage	Double layer mechanical, size 156x138mm, moving range 76x54mm. Low positioned X-Y coaxial control knob, can hold 2 specimen slides
Condenser	Abbe N.A.1.25 with aperture iris diaphragm and with socket to accomodate Phase Contrast slide Condenser center adjustable, color-coded diaphragm scale makrings corresonded with the objectives of different power.
Filter	Blue filter
Light source	6V 20W halogen lamp, Kohler type with field diaphragm
Power	100-240V wide power range, CE certified

Optional Accessories			Item No.
Head	Binocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm		A53.2706
	Trinocular Head,30° inclined, 360° rotatable, interpupillary distance 48-75mm		A53.2708
Eyepiece	WF10x/22mm, High Eyepoint up to 21mm		A51.2701-10C
	WF16x/14mm, High Eyepoint up to 21mm		A51.2701-16B
	Pointer Eyepiece WF10x/18mm		A51.2702-10A
	Pointer Eyepiece WF10x/20mm		A51.2702-10C
	Retical Eyepiece WF10x/18mm		A51.2703-10A
	Retical Eyepiece WF10x/20mm		A51.2703-10C
Objective	Infinity Plan Objectives 20X/0.45 ∞/0.17,WD1.24		A52.2706-20
	Infinity Plan Objectives 60X/0.80 ∞/0.17,WD0.40 (Spring)		A52.2706-60
Stage	Rackless mechanical stage 179(205)x175mm platform, moving range 75x50mm, low positioned X-Y coaxial control knob (right or left hand), can hold 2 specimen slides		A54.2703
Nosepiece	Quintuple reversed nosepiece		A54.2705-B
Light	Upgrade to LED 3W		A56.2705
Filter	Green filter		A56.2706-G
	Yellow filter		A56.2706-Y
	Frosted Glass		A56.2706-F
Polarizing	Simple Polarizing Set	Analyzer	A57.2701-A
		Polarizer	A57.2701-P
Dark Field	Dark field condenser, dry, for objective 4x,10x,40x,100x		A57.2710
Phase Contrast	Centering telescope		A57.2730-A
	Phase-contrast Condenser: NA:1.25, for 10X to 100X		A57.2737
	Phase Contrast Slide, for Infinity Plan Phase Contrast Objective	10x	A57.2734-10
		20x	A57.2734-20
		40x	A57.2734-40
		60x	A57.2734-60
		100x	A57.2734-100
	Infinity Plan Phase Contrast Objective, Positive	10x	A57.2735-10
		20x	A57.2735-20
		40x	A57.2735-40
		60x	A57.2735-60
		100x	A57.2735-100
	Infinity Plan Phase Contrast Objective, Negative	10x	A57.2736-10
		20x	A57.2736-20
		40x	A57.2736-40
		60x	A57.2736-60
		100x	A57.2736-100
Flourescent Attachment	Florecence Set 100W		A57.2770
	I-Grade Excitation Filter	UV	A57.2771-UV
		V	A57.2771-V
		B	A57.2771-B
		G	A57.2771-G
	C-Grade Excitation Filter (Lower grade, cheaper)	UV	A57.2772-UV
		V	A57.2772-V
		B	A57.2772-B
		G	A57.2772-G
Adapter	CCD Adapter	1.0x	A55.2701-10
		0.5x	A55.2701-05
		0.25x	A55.2701-25
	Digital Camera Adapter, SD2+SDK (need to know camera model)		A55.2702
